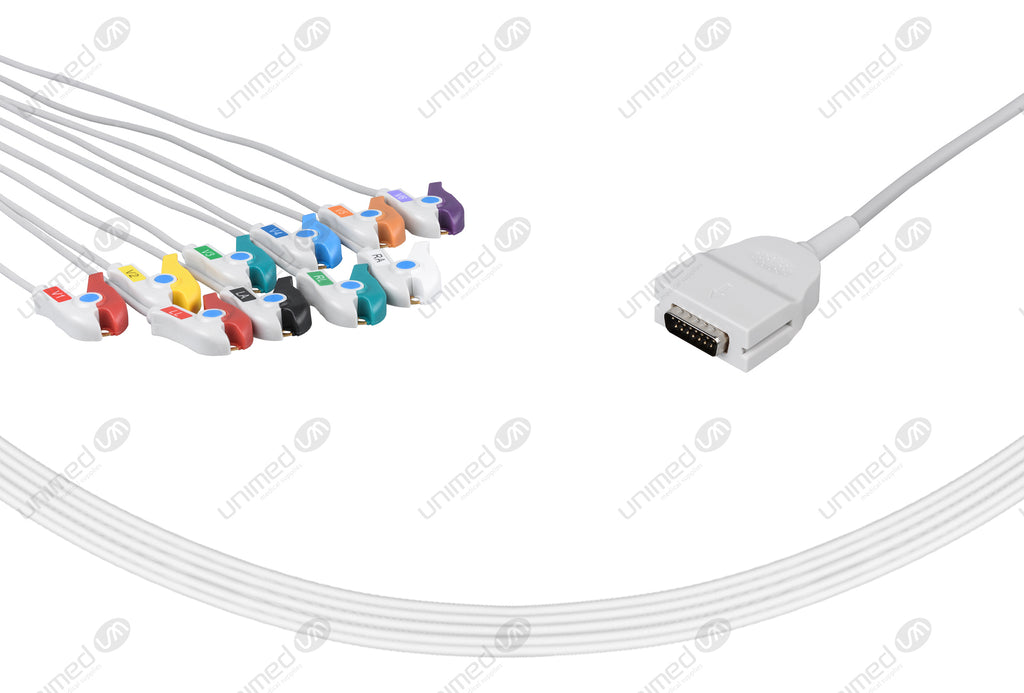

Burdick Compatible One Piece Reusable EKG Cable - AHA

Part Number: E10-BK1-B

$114
Resistance:
End Type:
Quantity:

Use this with:

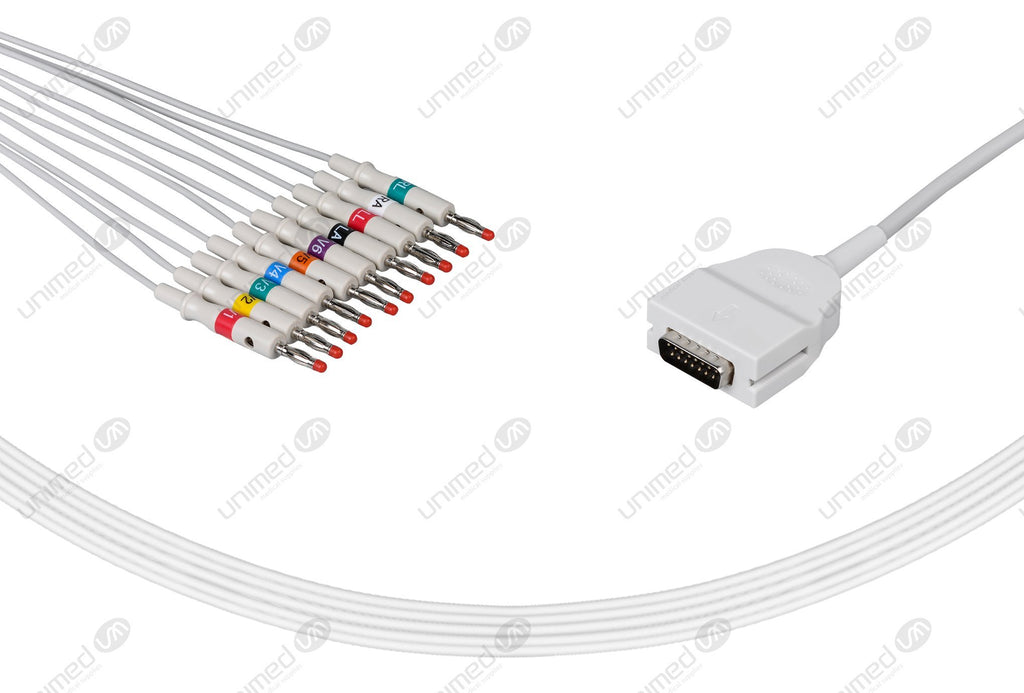

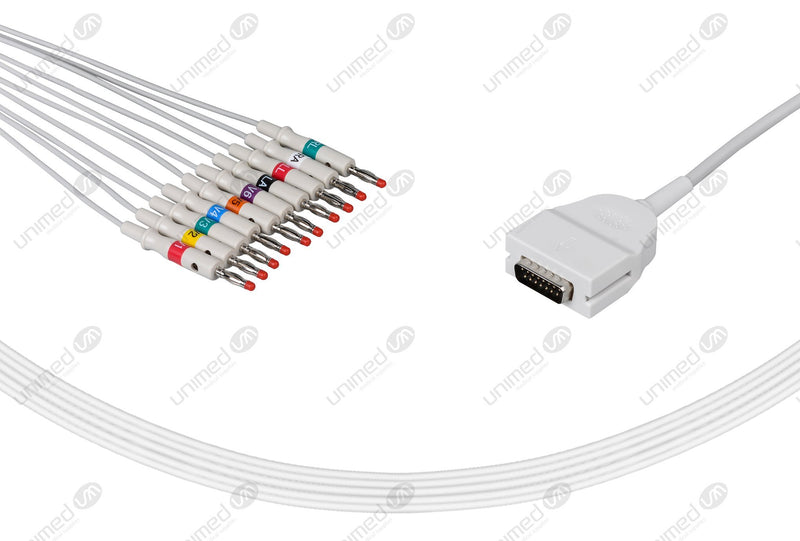

Unimed medical banana end with no resistance fixed EKG cable can replace OEM number CB-721001R/1, CB-721001R/1 from Curbell, Burdick 012-0700-00, 7517, 7514, 7705, 7706, and Schiller 55.065002. To make the cable service more patients with a comfortable user experience, we also supply needle, pitch, and snap end. And to meet the different requirements, we also have 10K resistance cables for it.

The materials for the cable are latex-free and would not cause irritation to the skin and discomfort to the patient.
Double shielded cables have a stable signal transfer and outstanding performance on anti-interference.


Compatibility:

Manufacturer

Model

Mortara > Burdick

E350; E350I; E550; E560; EK10; Eclipse LE; Elite; Elite II

Technical Specifications:

Category

One Piece Reusable EKG Cables

Regulatory compliance

CE, FDA, Anvisa, MDSAP, ANSI/AAMI EC53, ISO 10993 series

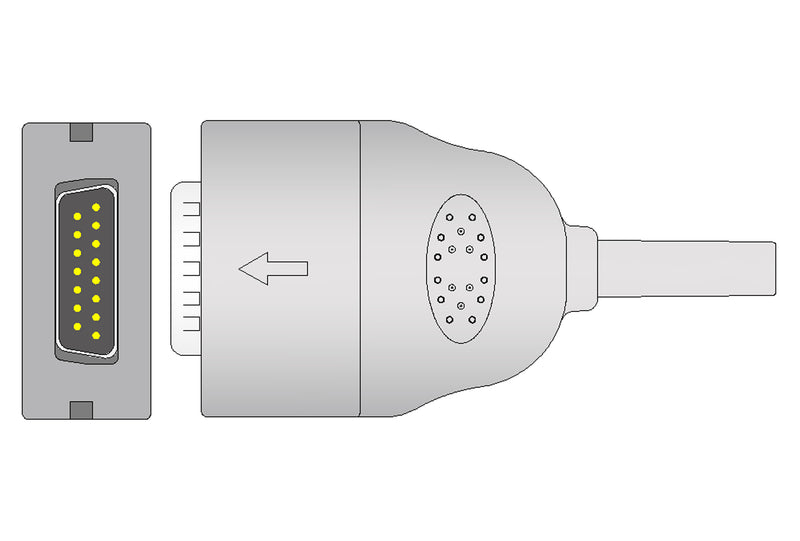

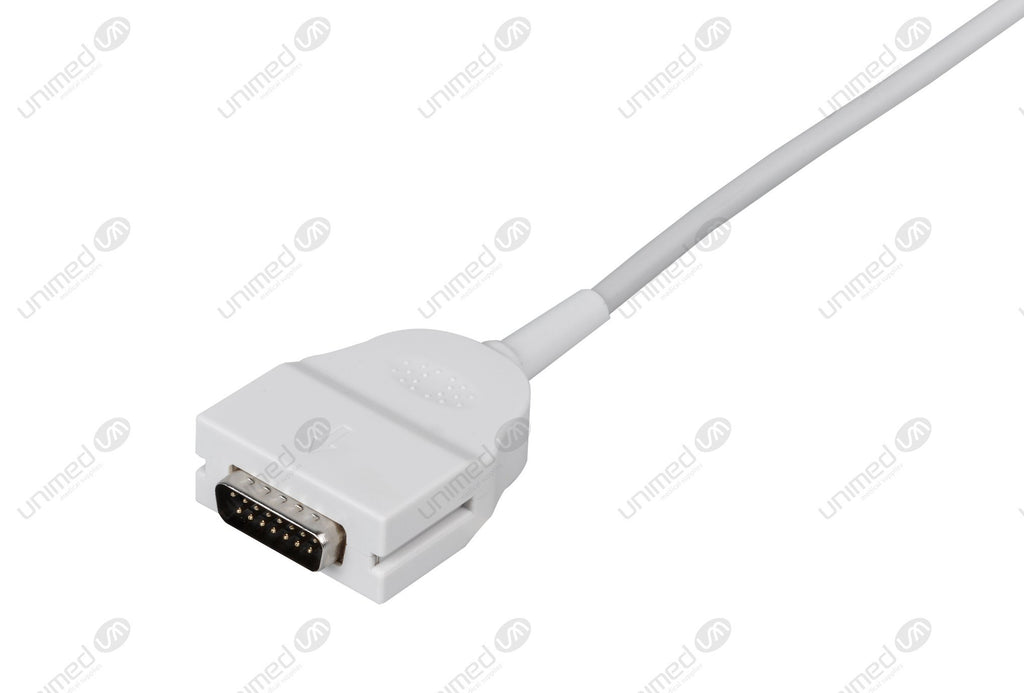

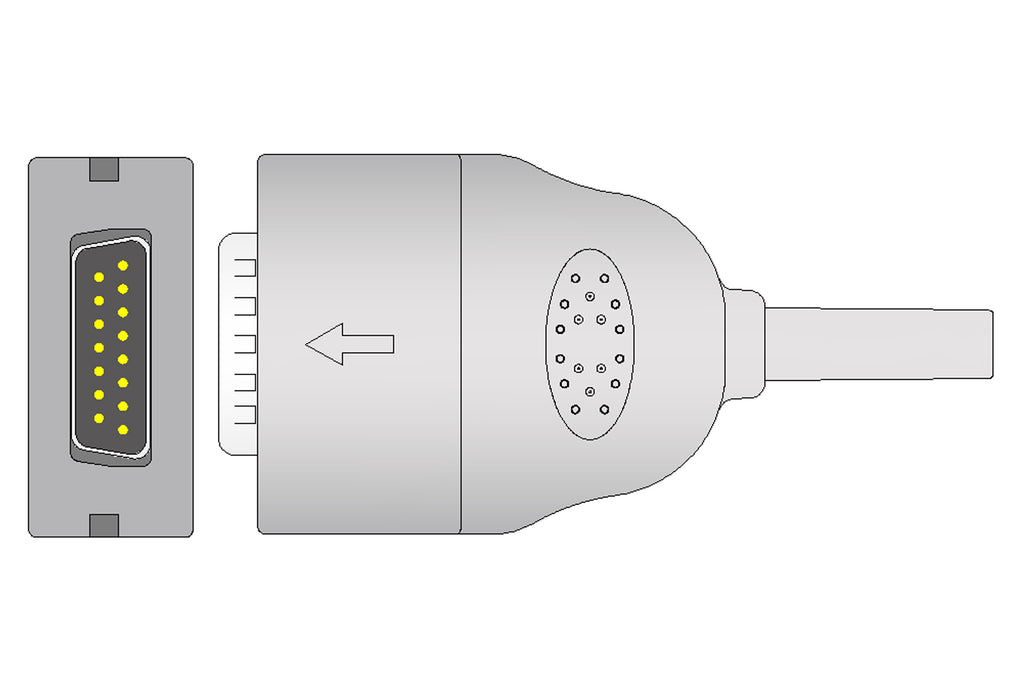

Monitor End Connector

DB-15 Male

Patient End Connector

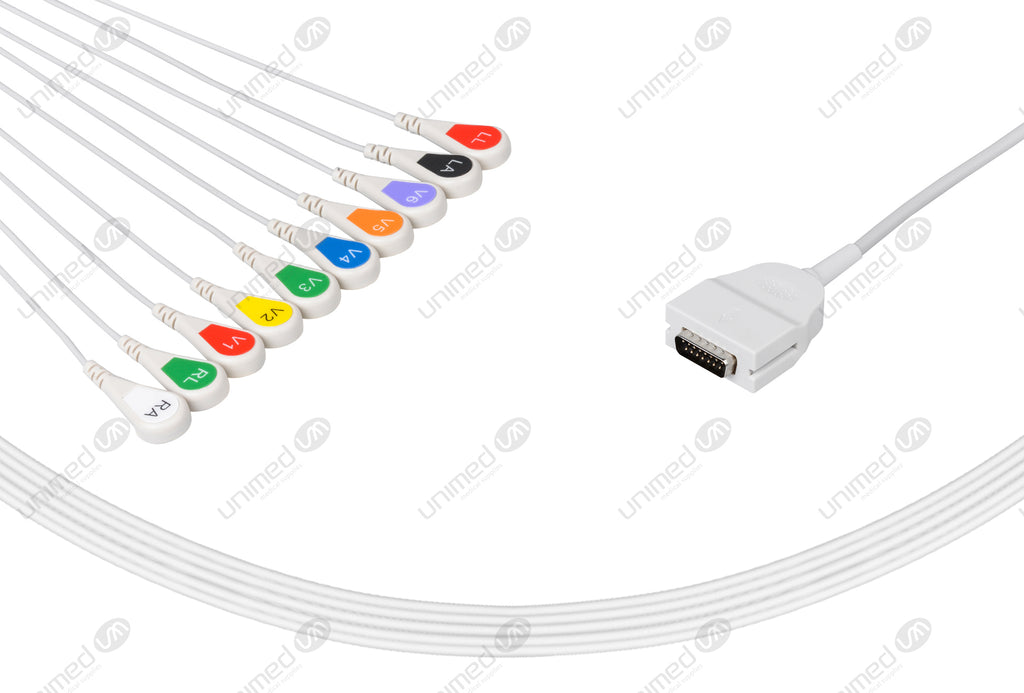

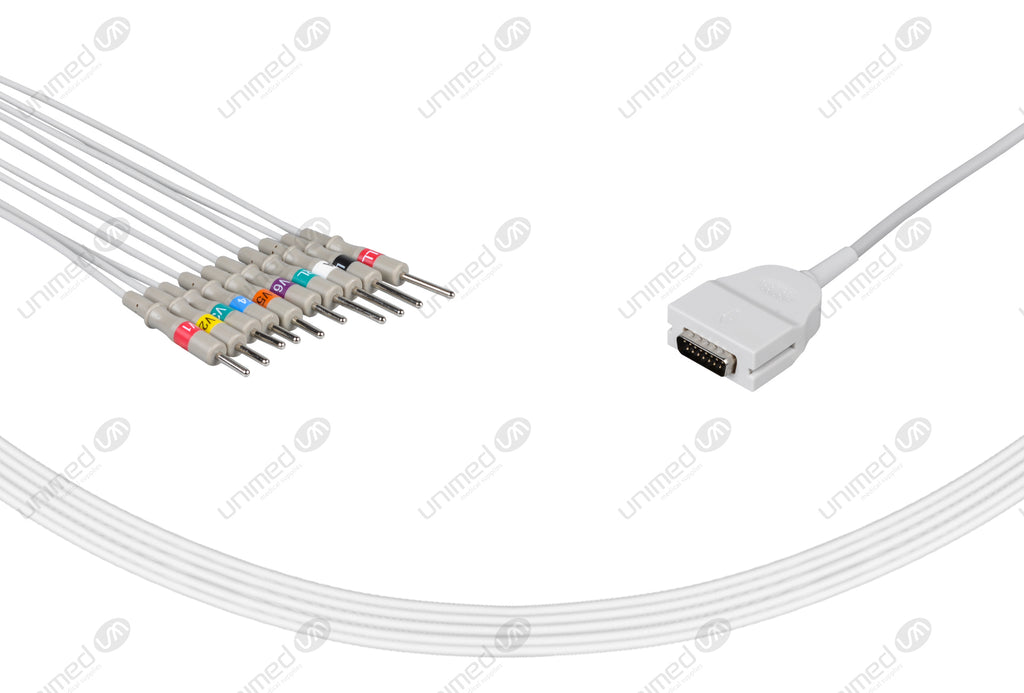

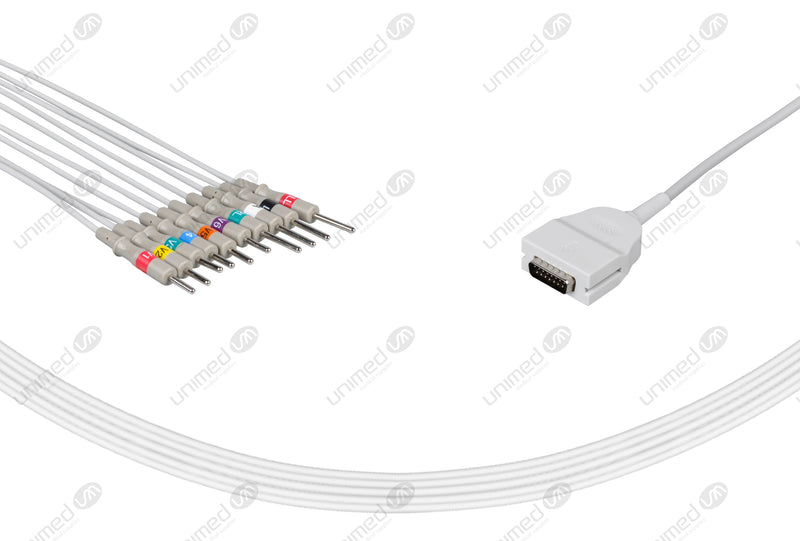

4mm Banana/3mm needle/grabber/snap End

Latex-free

Yes

Total Cable Length

11 ft

Trunk Cable Length

7 ft

Trunk Cable Diameter

6.0mm

Trunk Cable Material

TPU Jacket

Lead Cable Length

4 ft*4+3 ft*6

Lead Cable Diameter

3.0mm

Lead Cable Material

TPU Jacket

Resistance

NO or 10K according to your selection

Color Coding

AHA

Lead Number

10 Leads

Packaging Type

Bag

Packaging Unit

1

Package Weight

347.6g

Warranty

6 months
